China factory sell Galvanized Defensive Barrier Welded Gabion Baskets
Description:
1.Units can be both lined or unlined in other word it can be used together to any length, and can be stacked for
additional height.
2. The spiral hinged corners allows flat packing for ease of transportation
3. The welded mesh frame is of highly durable construction
4. The Galfan coated welded mesh frame is ideal for containing large amounts of the geavy fill material that
gives the system its strength.
5. The non-woven geotextile liner allowing a wide range of fill material
Product application:

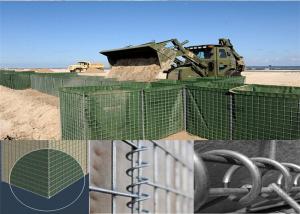

∗Perimeter Security and Defence Walls,
∗Equipment Revetments,
∗ garden landscaping decorative
∗Personnel and Material Bunkers, Observation Points, Defensive Firing Positions
∗Guard Posts, Explosives and Contraband Search Areas, Highway Checkpoints,

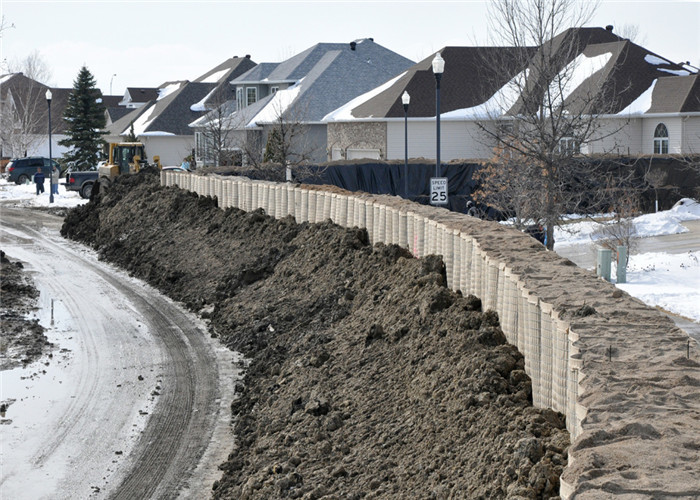

∗Border Crossing Checkpoints, Protecting Existing Structures, Flood control retaining wall
∗Coastal Erosion, Protection engineering of seaside area.
Quick View of Military Sand Wall :
Material : Low-carbon steel wire
Wire Diameter : 4-5.0mm
Spring Diameter : 4.0-4.5mm
Mesh Hole : 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm
Panel Size : 2.21× 2.13m, 1.37× 1.06m, 0.61× 0.61m, 1.37× 1.22m
Geotextile : In heavy duty non-woven polypropylene.
Finish : Hot Dipped Galvanized after /before welding, Galfan Coated before welding
The Common Specification of Military Sand Wall as followed:
| MODEL | Height | Width | Length | NO. of Cells |
| SX-1 | 4'6"(1.37M) | 3'6"(1.06M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-2 | 7'(2.1M) | 3'6"(1.06M) | 108'(33M) | 30 cells(6*5) |
| SX-3 | 2'(0.61M) | 2'(0.61M) | 4'(1.21M) | 2 cells |
| SX-4 | 3'3"(1.0M) | 3'3"(1.0M) | 32'(10M) | 10 cells(2*5) |
| SX-5 | 2'(0.61M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-6 | 5'6"(1.68M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-7 | 7'3"(2.21M) | 7'(2.13M) | 90'(27.74M) | 13 cells(2*4,1*5) |
| SX-8 | 4'6"(1.37M) | 4'(1.22M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-9 | 3'3"(1.0M) | 2'6"(0.76M) | 30'(9.14M) | 12 cells(2*6) |
| SX-10 | 7'(2.12M) | 5'(1.52M) | 95'(30.5M) | 20 cells(4*5) |
| SX-11 | 3'3"(1.0M | 3'3"(1.0M) | 3'3"(1.0M) | 1 Cell |
| SX-12 | 7'3"(2.21M) | 7'3"(2.21M) | 7'3"(2.21M) | 1 Cell |

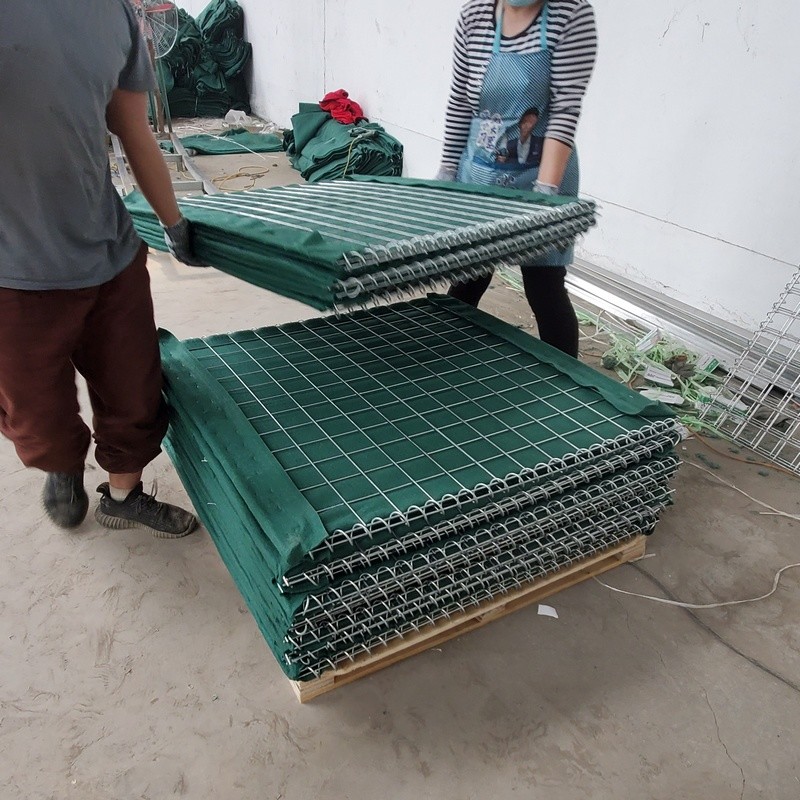

Packing and Shipping
∗Wrapped with shrink film then on pallet
∗Bulk load
∗Customized packing is available.
