Height 4'6" Military Hesco Barrier Fill Sand,Hesco Blast Wall With Geotextile Filter Fabric
Hesco Blast Wall units can be used for perimeter protection, border control and temporary accommodation bunkers.
The unit is a multi-cellular barrier system manufactured from welded Zinc-Aluminium coated steel mesh or galvanized steel wire mesh and lined with heavy-duty non-woven polypropylene geotextile.The unique design, strength and versatility enable corners to be constructed easily, shaping the defensive barrier to the surrounding landscape and when joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.
Material: Low-carbon steel wire
Wire Diameter : 4-5.0mm
Spring Diameter : 4.0-4.5mm
Mesh Hole : 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm
Panel Size: 2.21× 2.13m, 1.37× 1.06m, 0.61× 0.61m, 1.37× 1.22m
Geotextile : In heavy duty non-woven polypropylene.
Finish : Hot Dipped Galvanized after /before welding, Galfan Coated before welding
Hesco Blast Wall Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cel |
Hesco Blast Wall Use Deatils:

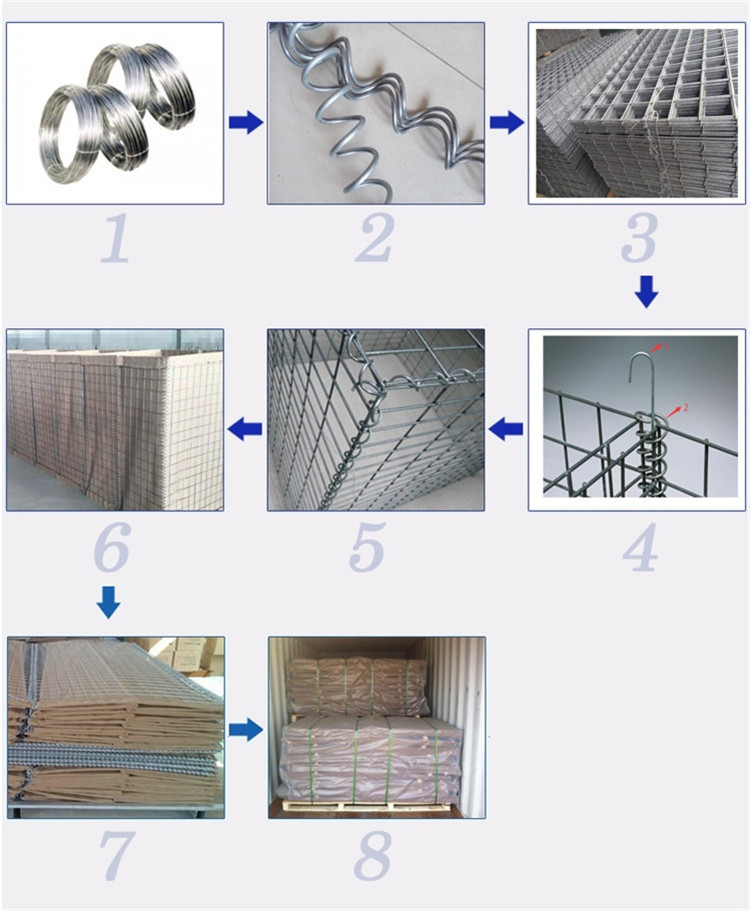

Unpack---Pull out and set up-----Connect together---- Fill and compact----Finished
Hesco Blast Wall Application :
♦ Perimeter security and defense walls
♦ Equipment revetments
♦ Personnel and material bunkers
♦ Observation points
♦ Defensive firing positions
♦ Guard posts
♦ Protection engineering of seaside area
♦ Border crossing checkpoints
♦ Protecting existing structures
♦ Flood control retaining wall
Application:
Military Defense
Perimeter Security Barrier and Defence Wall
Temporary Fort and Command Post
Observation Points and Border Checkpoints
Military Barrier Fortification System
Equipment Revetment
Explosives and Contraband Search Areas
Guard Posts
Personnel and Material Bunkers
Shooting Range
Flood Control
Flood Prevention Barrier
Permanent or Semi-permanent Dike
Flood Control Retaining Wall
Protection Engineering of Seaside Area
Protecting Existing Structures
Coastal Erosion Control
If you have another question, pls feel free to contact us .
