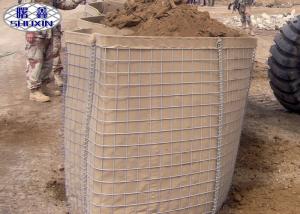

3x 3 Welded Mesh Square Hole Military Hesco Barriers

  • 1
  • 2
  • 3

Brand Name : SHUXIN

Model Number : Military Sand Wall

Certification : CE SGS ISO COC

Place of Origin : CHINA

MOQ : 100 unit

Price : Negotiated

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500 units per week

Delivery Time : 15 work days

Packaging Details : pallet and plastic film

Hesco size : 0.61x0.61m,1x1m,2.13x2.21m

Sureface Treatment : Hot Dip

mesh hole : 3" x 3"

wire : 5.0mm

life duration : ≥ 25 years

Include : non-woven polypropylene geotextile

Type : Welded Mesh square

Style : mil 1 -- mil 10

Contact Now

3''x 3'' Welded Mesh Square Hole Shape Military Barriers Hot-Dip

Introduction of Military Barriers :

1. Military Barrier unit is a multi-cellular barrier system manufactured from welded Hot-dipped galvanised steel wire mesh and joined with vertical, helical-coil joints. The units are lined with a heavy-duty non-woven polypropylene geotextile. When joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.

3x 3 Welded Mesh Square Hole Military Hesco Barriers3x 3 Welded Mesh Square Hole Military Hesco Barriers3x 3 Welded Mesh Square Hole Military Hesco Barriers3x 3 Welded Mesh Square Hole Military Hesco Barriers

2. Specification:


1) Material: Steel wire, galvanized wire
2) Wire diameter: 4mm-5mm
3) Hole: 3''x3''
4) Hesco size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested.
5) Geotextile: in non-woven geotextile, color can be white, beige-sand color.
6) Color: White, Sand color, Military Green

Military Barrier
Material Steel wire, galvanized wire, Zinc-Aluminum coated wire
Wire Diameter 4.0mm 5.0mm
Spring Diameter 4.0mm
Mesh Opening 50*50mm, 75*75mm, 76.2*76.2mm, 50*100mm, 100*100mm, ect
Panel Size 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested
Geotextile Heavy duty non-woven polypropylene
Colour White, Sand color, Military Green

The Common Specification of Military barriers as followed:

MODEL Height Width Length NO. of Cells
SX-1 4'6"(1.37M) 3'6"(1.06M) 32'(10M) 9 cells(1*4, 1*5)
SX-2 7'(2.1M) 3'6"(1.06M) 108'(33M) 30 cells(6*5)
SX-3 2'(0.61M) 2'(0.61M) 4'(1.21M) 2 cells
SX-4 3'3"(1.0M) 3'3"(1.0M) 32'(10M) 10 cells(2*5)
SX-5 2'(0.61M) 2'(0.61M) 10'(3.05M) 5 cells
SX-6 5'6"(1.68M) 2'(0.61M) 10'(3.05M) 5 cells
SX-7 7'3"(2.21M) 7'(2.13M) 90'(27.74M) 13 cells(2*4,1*5)
SX-8 4'6"(1.37M) 4'(1.22M) 32'(10M) 9 cells(1*4, 1*5)
SX-9 3'3"(1.0M) 2'6"(0.76M) 30'(9.14M) 12 cells(2*6)
SX-10 7'(2.12M) 5'(1.52M) 95'(30.5M) 20 cells(4*5)
SX-11 3'3"(1.0M 3'3"(1.0M) 3'3"(1.0M) 1 Cell
SX-12 7'3"(2.21M) 7'3"(2.21M) 7'3"(2.21M) 1 Cell

3x 3 Welded Mesh Square Hole Military Hesco Barriers3x 3 Welded Mesh Square Hole Military Hesco Barriers3x 3 Welded Mesh Square Hole Military Hesco Barriers3x 3 Welded Mesh Square Hole Military Hesco Barriers

Military barriers Sand Wall Application:

1. Flood Control.

Most of People used as the bulwark all over the river, unfold it and filled with sand or earth, instad of sandbags, it is easy to operate and efficacious.

2. Military Defence

Most of army used for protection, because the bullet can not penetrate it easily, it can prevent explosion, and not easy to destroied.

3. Hotel Pretection

A lot of Superior Hotel used as the protection wall outside, safety, and beautiful.

3x 3 Welded Mesh Square Hole Military Hesco Barriers
