Welding Army Sand Filled Barriers Anti Blast Military Barrier Wall Bastion Barrier For Burkina Faso
SHUXIN company had been produce welded wire mesh products hesco barriers more than 15 years.
our products been supplied many countries's department of defense. and army force.
Such as UAE Jordan, USA,Greece,Saudi Aria, Dubai,Kenya ....
and our factory had been verified onsite by world-leading inspection company SGS Group.
we have CE ISO certification. and we have confidence to become your stable and believable supplier in China.
Welcome inquiry for us about hesco barriers.
The Dimension / Specification for Military HESCO Barrier:
| Product Name | Hesco Barrier |
| Product Type | Welded Mesh |
| Material | Galvanized Steel Wire or Galfan/zinc-5% Aluminum Wire |
| Wire Diameter | 4.0, 5.0mm, Spring Wire Diameter: 4mm |
| Geotextile | 250g-400g |
| Geotextile colour | Sand clolor, Brown, Gray,and Military Green. |
| Mesh hole | 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm |
Military Barrier Wall Introduction:
Wire diameter: 3mm, 4mm, 5mm
Mesh size: 50mmx50mm, 75mmx75mm,76.2mmx76.2mm,100mmx100mm
Panel size: 2.21mx2.13m, 1.37mx1.06m, 0.61mx0.61m, it also can be customized according to customers requirement
Geotextile: in heavy duty non-woven polypropylene
Finish: hot dipped galvanized, galfan coated after welded
Packing: wrapped with shrink film or packed in pallet.
The Size Sheet for Military HESCO Barrier:
| MODEL | Height | Width | Length | NO. of Cells |
| SX-1 | 4'6"(1.37M) | 3'6"(1.06M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-2 | 7'(2.1M) | 3'6"(1.06M) | 108'(33M) | 30 cells(6*5) |
| SX-3 | 2'(0.61M) | 2'(0.61M) | 4'(1.21M) | 2 cells |
| SX-4 | 3'3"(1.0M) | 3'3"(1.0M) | 32'(10M) | 10 cells(2*5) |
| SX-5 | 2'(0.61M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-6 | 5'6"(1.68M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-7 | 7'3"(2.21M) | 7'(2.13M) | 90'(27.74M) | 13 cells(2*4,1*5) |
| SX-8 | 4'6"(1.37M) | 4'(1.22M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-9 | 3'3"(1.0M) | 2'6"(0.76M) | 30'(9.14M) | 12 cells(2*6) |
| SX-10 | 7'(2.12M) | 5'(1.52M) | 95'(30.5M) | 20 cells(4*5) |
| SX-11 | 3'3"(1.0M | 3'3"(1.0M) | 3'3"(1.0M) | 1 Cell |
| SX-12 | 7'3"(2.21M) | 7'3"(2.21M) | 7'3"(2.21M) | 1 Cell |
The Detailed Explanation of Application for HESCO Barrier:

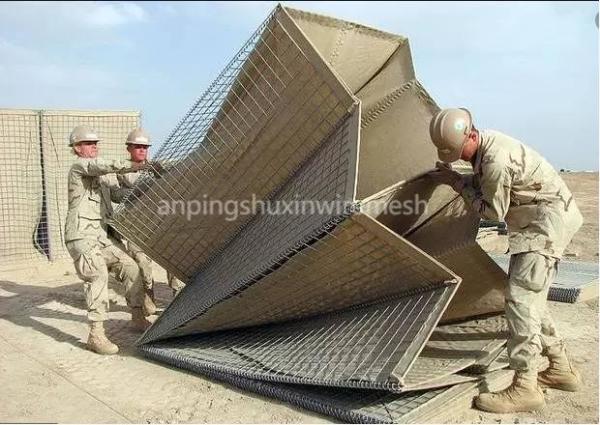

1. Military Fortifications
Most Army Used HESCO Barrier build up a Military Fortifications, Because it can stack on each other, You can change the width and height by your demands. More easy and flexible.
2. Shooting Range
Nowadays, A lot of people use HESCO Barrier to build a shooting range, because its High Strength Defense, more safety.
3. Flood Control
We Mentioned above, The HESCO Barrier is more and more popular and Homemade. Most Countries Near the coastline choose the HESCO Barrier as Flood Protection Wall.Even around the hotel they stand up the HESCO Barrier for Protection Wall.
The Advantages for HESCO Barrier:
Easy to handle and install
High strength and impact resistance
Long life, normal use
It can be filled with sand, cement, stones, and soil.
HESCO Barrier characteristics
The Defensive Barrier cage produced by our company has as many as 12 specifications, in various colors such as earthy gray, earthy yellow, grass green, etc., and can be flexibly combined to apply to different scenes or purposes.
