Defensive Retaining Wall Military Sand Wall hesco barrier For United Nations
Description :
Military Sand Wall rapidly deployable fortification systems
Easily and Rapidly constructed create effective and economical protective structures. Originally designed to replace conventional field fortification materials such as sandbags, units were first used operationally by the British Army in the 1991 Gulf War. is now in service with many major military organisations including the UK MoD, ADF and the US Military and has become a benchmark in force protection throughout the world.
Quick View of Military Sand Wall :

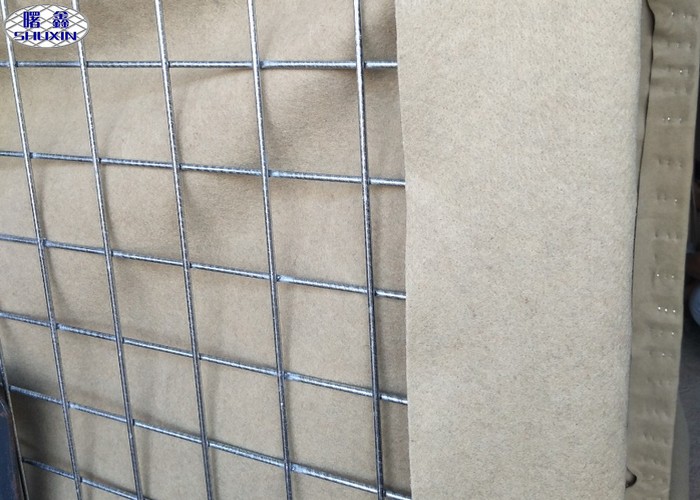

Material : Low-carbon steel wire
Wire Diameter : 4-5.0mm
Spring Diameter : 4.0-4.5mm
Mesh Hole : 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm
Panel Size : 2.21× 2.13m, 1.37× 1.06m, 0.61× 0.61m, 1.37× 1.22m
Geotextile : In heavy duty non-woven polypropylene.
Finish : Hot Dipped Galvanized after /before welding, Galfan Coated before welding
The Military Sand Wall come in a variety of sizes. Most of the barriers can also be stacked, and they are shipped collapsed in compact sets. Example dimensions of typical configurations are 1.4m x 1.1m x 9.8m (4'6" x 3'6" x 32') to 2.1m x 1.5m x 30m (7' x 5' x 100').
The Common Specification of Military Sand Wall as followed:
| MODEL | Height | Width | Length | NO. of Cells |
| SX-1 | 4'6"(1.37M) | 3'6"(1.06M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-2 | 7'(2.1M) | 3'6"(1.06M) | 108'(33M) | 30 cells(6*5) |
| SX-3 | 2'(0.61M) | 2'(0.61M) | 4'(1.21M) | 2 cells |
| SX-4 | 3'3"(1.0M) | 3'3"(1.0M) | 32'(10M) | 10 cells(2*5) |
| SX-5 | 2'(0.61M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-6 | 5'6"(1.68M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-7 | 7'3"(2.21M) | 7'(2.13M) | 90'(27.74M) | 13 cells(2*4,1*5) |
| SX-8 | 4'6"(1.37M) | 4'(1.22M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-9 | 3'3"(1.0M) | 2'6"(0.76M) | 30'(9.14M) | 12 cells(2*6) |
| SX-10 | 7'(2.12M) | 5'(1.52M) | 95'(30.5M) | 20 cells(4*5) |
| SX-11 | 3'3"(1.0M | 3'3"(1.0M) | 3'3"(1.0M) | 1 Cell |
| SX-12 | 7'3"(2.21M) | 7'3"(2.21M) | 7'3"(2.21M) | 1 Cell |
Military Sand Wall Features :

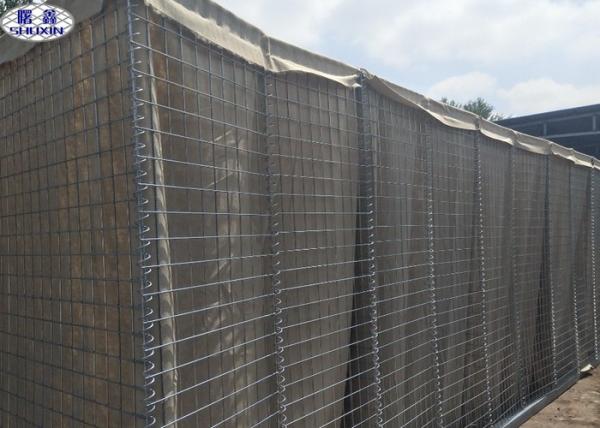

Military Sand Wall can be built to any required length and to any height. The unique joining system allows the user great flexibility in configurations and requirements. One of the key advantages of the system is that any readily available infill material can be utilised. Sand, rubble, rocks, soil, concrete and even snow have been successfully used.
Rapid construction is another key feature of the product. A typical wall of units equivalent to approximately 1500 sandbags, can be erected and filled by two men and a single common loader in less than twenty minutes. An equivalent wall constructed of sandbags would take 10 men 7 hours to build.
Military Sand Wall Application:
1. Flood Control.
Most of People used as the bulwark all over the river, unfold it and filled with sand or earth, instad of sandbags, it is easy to operate and efficacious.
2. Military Defence
Most of army used for protection, because the bullet can not penetrate it easily, it can prevent explosion, and not easy to destroied.
3. Hotel Pretection
A lot of Superior Hotel used as the protection wall outside, safety, and beautiful.
